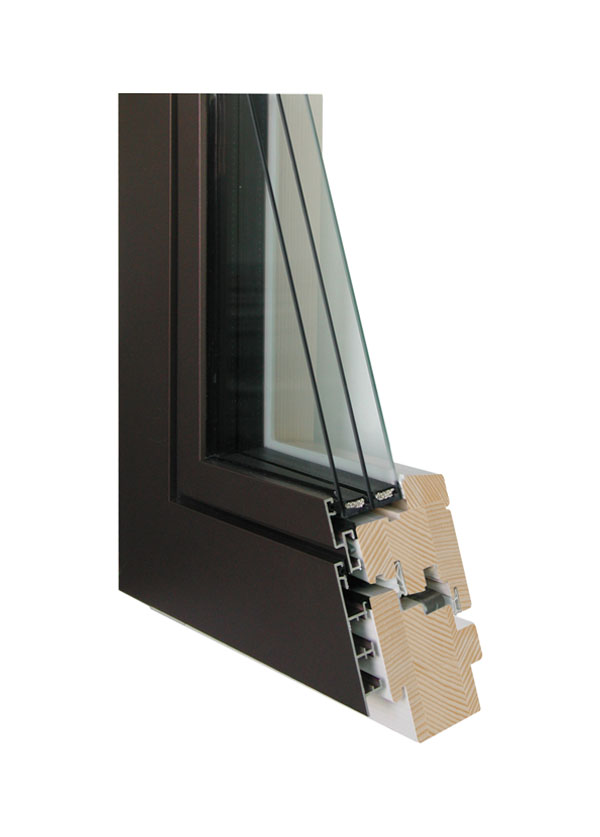

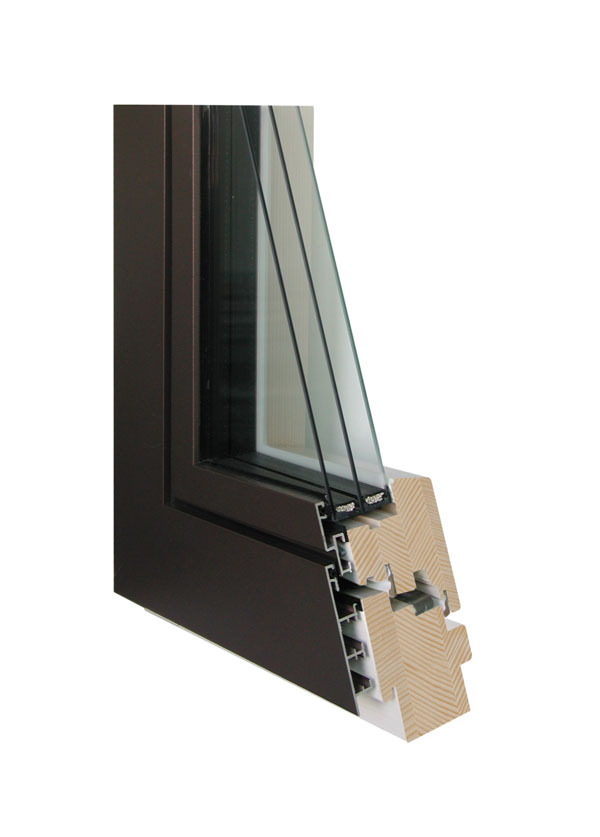

Wood/aluminium Windows INO-HA80 VISION

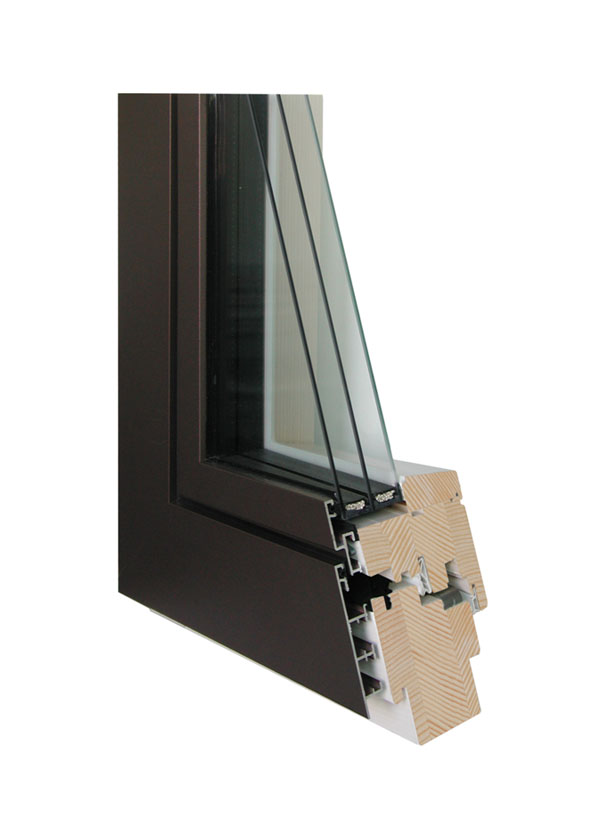

INO-HA80-F
Wood types and colours
WOOD COLOUR CHART
We offer a broad selection of colour coatings for wood in compliance with the Inles and RAL colour charts. The coatings are water based and environmentally friendly.
ALUMINIUM COLOUR CHART
All of the aluminium cladding is powder-coated, which is more eco-friendly and provides excellent quality and stability of the painted surfaces. We offer various shades of metallic colours, imitation wood decor and colours in line with the RAL colour chart.
TRIPLE-LAYER COATING
The undercoating agent protects the wood from fungi and insects and evens any colour differences in the wood. The intermediate layer seals off any pores in the wood for an even and smooth surface. During the final robotic electrostatic stage, the coating is evenly applied across the entire surface of the workpiece, producing a more durable and visually sophisticated product.
SURFACE TREATMENT OF WOOD
Inles carries out surface treatment using environmentally-friendly protective coatings, which are the main factor in the longevity, durability and appearance of wood products. At Inles, we have dedicated a lot of attention to the matter and are proud of our robotic electrostatic final coating of wood products.
Glazing
The following options are available for the INO-HA80 wooden window:
- Aluminium, stainless steel or plastic spacers
- Thermal transmittance of glass: Ug from 0,5 to 0,6 W/m2K
- Acoustic performance of glass: Rw from 34 to 45 dB
- Solar energy transmittance of glass: g-values from 37% to 60%
- Various safety glass and muntin grille designs
The panes are sealed using permanent elastic seals that match the colour of the product. Inles windows use glass that is produced in Slovenia by the quality Austrian manufacturer Ertl glas.
Have a look at the comprehensive selection of Inles thermal and sound insulating glass and safety glass. .
Triple glazing
UNITOP 0,5
U = 0,5 W/m2K – Argon
6:/18/4/18/:4 = 52 mm
Rw = 40 dB
Light transmission 73%
Energy permeability 51%

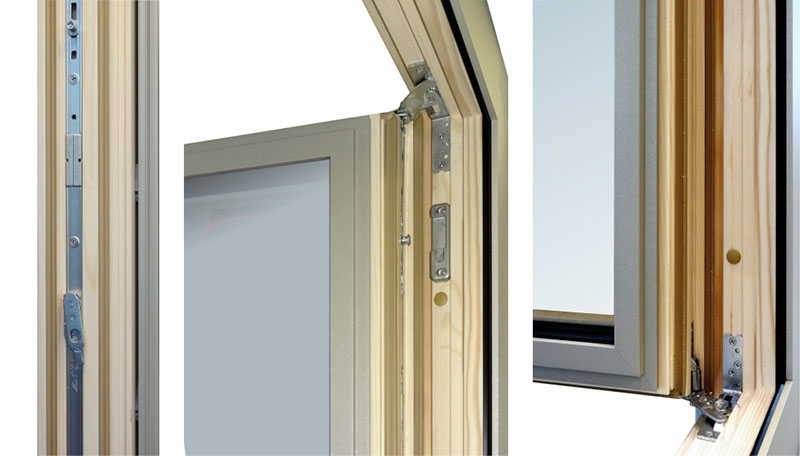

Security
- Tested equipment with grade RC1 and RC2 security level certificates
- MVS contact elements with window opening indicator (alarm)
- Sponge-like closing members that prevent the casement from being removed from the frame
- Various models and safety glass levels

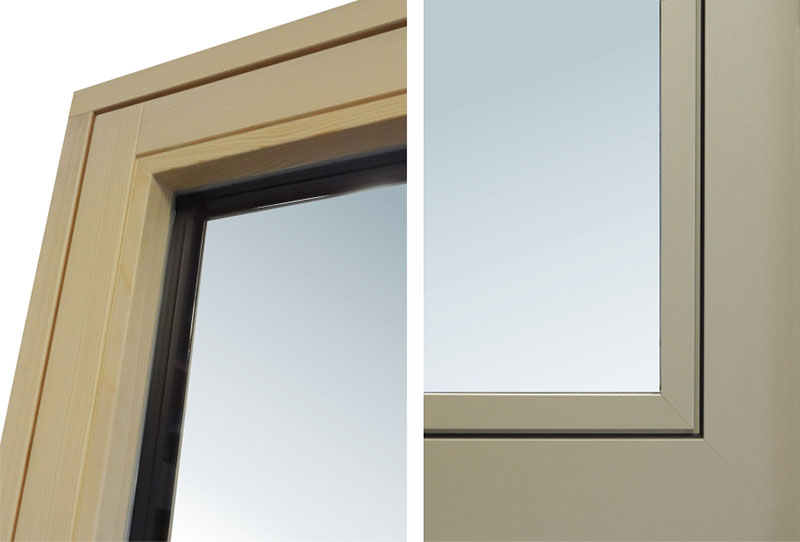

Technical details
Technical brochure
Read the brochure on the equipment, possible implementations and thermal performance of the product.
CE mark
The product is labelled with the CE marking and is compliant with EU directives on free marketability on the EU market.
Advantages
- The wooden corner joints on the frame and casement are the mortise and tenon type, which is the strongest joint available in window frame construction
- The aluminium cladding is attached to the wooden frame using plastic clamps that prevent direct contact of aluminium and wood and enable air circulation and venting of moisture from the intermediate space
- We use only quality wood that meets the RAL quality criteria according to DIN 68360
- Triple-layer surface treatment using electrostatic wood coating
- Powder-coated aluminium cladding
- High level of security of the standard hardware
- Permanent elastic seals ensure superior airtightness and watertightness, which are constantly controlled using our own testing machine
- Certified and tested product
- Optional thermally modified spruce wood
- Broad selection of muntin grilles, glass types, handles, colours and coatings for wooden and aluminium surfaces, etc.
